Wireless charging problems in a Sierra almost always come down to one of six symptoms. Find the one that matches what your truck is actually doing, and you will know what is wrong in about a minute.
Most of these cost nothing to fix.
Symptom: it has never worked properly since you bought the truck
Start with the obvious one. Does your Sierra actually have a factory wireless charging pad?

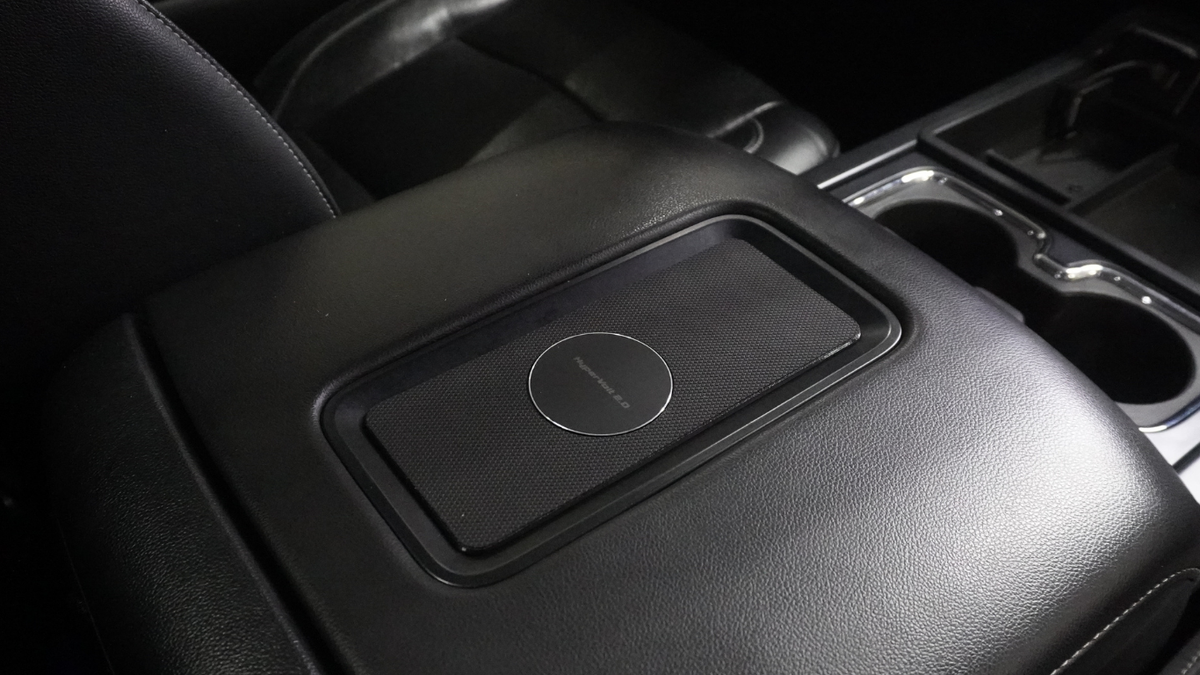

Not every Sierra came with one. It was tied to trim level and options, so two trucks from the same year can differ. Open the console and look at the flat surface at the front. A charging pad is a distinct rubberised or textured area, usually with a small phone icon moulded into it or a status light nearby. A plain plastic tray is not a charging pad.
If there is no pad, nothing is broken. Your truck was built without the feature.
Symptom: it worked fine, then stopped one day
A sudden failure with no gradual decline usually means something electrical rather than something to do with your phone.
Check these two things before anything else:
- The 12V outlet inside the console. Plug something else into it. If that is dead too, the problem is the circuit, not the charger
- The fuse. The charging module runs on a circuit that can blow like any other. Your owner's manual has the layout
If the outlet works and the fuse is good, and a second phone with no case also refuses to charge, the module itself has failed.
Symptom: it charges when parked, quits when you are driving
This is the most common complaint from Sierra owners and it is the one people most often misdiagnose as a fault.
The factory pad has no magnets. It holds your phone in place with nothing but friction and gravity. On pavement that is usually fine. On gravel, a job site, a washboard back road, or anything with a decent pothole, the phone shifts a few millimetres, the charging coils fall out of alignment, and it silently stops.
You do not get a warning. You look down forty minutes later and the battery is lower than when you set it down.
The test: park the truck, set the phone down, and watch whether it charges. If it does, and it only fails on the move, this is your answer. Nothing is broken. The design just was not built for how you use the truck.
There is no free fix. You can recentre the phone every few minutes, or you can move to a charger that holds the phone magnetically.
Symptom: it works with one phone but not another
Almost always the case rather than the phone.
Wireless charging passes power between two coils that need to sit close together. Anything in between adds distance or interference:
- Thick or armoured cases. Past roughly 3 mm and you are pushing it
- Metal plates. If either phone has ever been on a magnetic vent mount, there may be a steel disc stuck inside the case. This stops charging completely
- Wallet cases. Cards sit right in the charging field. It will not work, and you can wreck the cards
- PopSockets and ring grips. They lift the phone off the surface
The test: take both phones out of their cases and try again. If the problem phone now charges, you have found it.
Symptom: it charges, but barely
Sometimes nothing is broken and the pad is doing exactly what it was designed to do, just far slower than you need.
The wireless charging in these trucks was specified years before the phone in your pocket existed. Run navigation, stream music over Bluetooth and keep the screen on, and a modern phone can use power faster than a low output pad can replace it. You set off at 45% and arrive at 43%, and it looks like a failure.
The test: plug the same phone into a cable in the same truck. If the cable pulls it up quickly while the pad only holds it level, the pad works. It is just underpowered for what you are asking of it.
Symptom: it only plays up in summer
Wireless charging generates heat. So does a phone sitting in a closed console with the sun on the truck. Phones throttle charging or stop it altogether when they get too warm, and that is protection working, not a fault.
If it is reliable in April and useless in July, this is why. Leave the console lid open on hot days, keep the phone out of direct sun before you set it down, and take heavy cases off in summer since they hold heat in.
Quick reference
- Never worked: check the truck actually has a factory pad
- Stopped suddenly: 12V outlet, then fuse, then the module
- Fails only when moving: alignment, no fix without magnets
- One phone but not another: the case
- Slow but working: underpowered pad
- Only in summer: heat protection
When it is worth replacing the module
Two situations make replacement worth it. Either the module has genuinely died, or it technically works but drops out constantly and charges too slowly to be useful.
We build the HyperVolt 2.0 for both. It fits the same factory console location and charges at 25 W, with MagSafe-style magnetic alignment so the phone stays put over rough ground, and a raised surface that clears large camera bumps and takes phones up to 3.5 inches wide. It powers off the 12V outlet already inside the console, so there is no cutting and no splicing, and the job takes under 30 minutes with basic tools.
Check this first: the HyperVolt replaces an existing factory wireless charging console. If your Sierra was built without a charging pad, it is not the right part. Not sure what you are looking at? Send us a photo of your console and we will tell you straight.
It fits 2014-2018 Sierra and Silverado, 2019 Sierra and Silverado 2500HD, and 2015-2020 Yukon, Tahoe and Suburban. You can watch the install before you buy.
