Ultimate Guide to Upgrading Your OBS Ford Gauge Cluster (1992–1997)

Ultimate Guide to Upgrading Your OBS Ford Gauge Cluster (1992–1997)

Mitchell Saruwatari |

Faceplates, LEDs, HVAC Panels, Lens Polishing, Needle Alignment & More

The 1992–1997 OBS Ford trucks (F-150, F-250, F-350, Bronco) are finally getting the restoration love they deserve. And if you own one, you already know the truth:

The factory gauge cluster hasn’t aged well.

Faded numbers, dim green lighting, cracked lenses, sloppy needles — time has not been kind.

The good news?
Upgrading your OBS Ford gauge cluster is one of the highest-impact interior mods you can do. And with the right parts, it’s also completely reversible and fully DIY-friendly.

This guide walks you through every major upgrade you can make:

  • Modern faceplates

  • LED illumination

  • HVAC panel upgrades

  • Lens polishing

  • Needle alignment

  • Cluster housing refresh

  • Gear indicator adjustment

  • Bulb replacement

  • Hidden warning light compatibility

This is the definitive, U.S.-focused guide to making your OBS cluster look brand new — or better than new.

Why Upgrade Your OBS Ford Gauge Cluster?

Most OBS trucks are 25–30 years old. By this point, the cluster shows common issues:

  • Faded or peeling gauge numbers

  • Dim or inconsistent lighting

  • Scratched, yellowed cluster lenses

  • Sticky or inaccurate needles

  • Cracked HVAC panel illumination

  • Misaligned gear indicator

  • Broken trim tabs or sagging plastic

A modern cluster upgrade solves nearly all of these at once — dramatically improving nighttime visibility and giving the truck a clean, updated interior look without losing the classic OBS feel.

What You Need for a Full Cluster Upgrade

A full interior refresh typically includes:

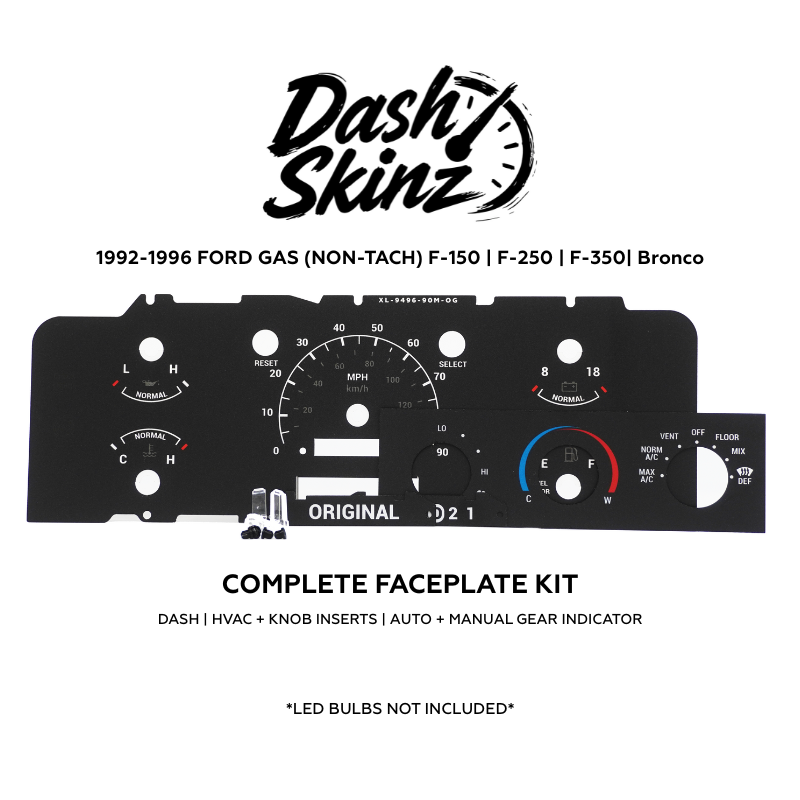

✓ Modern faceplate overlay kit

Direct replacements for OEM graphics with updated design, sharper detail, and hidden illumination.

✓ LED bulb upgrade

Much brighter and more consistent than OEM bulbs.

✓ New HVAC control overlay + clear knob inserts

Matches the cluster upgrade and ensures even lighting.

✓ Alignment pins + sticky dots

For perfect faceplate positioning and easy reversibility.

✓ Basic hand tools

  • T10, T15, T20 Torx

  • 7/32" socket

  • Razor blade

  • Plastic trim tools

  • ISO alcohol + rags

Part 1 — Removing the OBS Cluster Assembly

This is surprisingly simple if you take your time and follow the order.

1. Remove radio/stereo bezel

Pop it out and set it aside.

2. Put the truck in PARK and engage the parking brake

You’ll be moving the shifter later.

3. Remove the upper and side trim pieces

They’re brittle after 30 years — be gentle.

4. Disconnect the fuel tank selector switch

If equipped with dual tanks.

5. Remove the two T20 screws holding the cluster bezel

Pull bezel out carefully and set aside.

6. Prepare for needle alignment

Before touching anything else:

  • Take photos with the truck off

  • Take photos in accessory

  • Take photos with the truck running

These will be your reference for putting the needles back correctly.

7. Disconnect the gear indicator cable

Slide the hook off the small white arm.

8. Remove the four main cluster screws and unplug the harnesses

There are three plugs on the back of the cluster.

Now the whole assembly comes free.

Part 2 — Upgrading the Cluster Lens & Housing

Polish or replace the lens

Most OBS lenses are heavily scratched.
Use a fine sand/polish kit or replace it entirely.
This alone makes the cluster look 10 years newer.

Clean the housing

Dust, grime, and residue build up around the warning indicators — clean everything with ISO.

Part 3 — Installing the New Faceplate Overlay

This is the heart of the upgrade.

1. Remove OEM faceplate pieces

They’re held on with aging adhesive — gently pry them up.

2. Clean the underlying surfaces

Use ISO to remove glue so the new faceplate sits flush.

3. Install the new faceplate

  • Set alignment pins first

  • Place the new faceplate over them

  • Use sticky dots only at the corners (reversible install)

These new overlays sit clean and straight — much better than sagging OEM graphics.

Part 4 — LED Cluster Bulb Upgrade

LEDs are mandatory if you want the cluster to look like your website photos.

Important note:

Leave OEM bulbs in the alternator/battery circuit slot.
Ford’s charging system sometimes relies on OEM bulb resistance — LED may prevent charging.

Replace all other illumination bulbs with LEDs.

Check polarity:

If a bulb doesn’t light, flip it 180°.

Part 5 — Needle Removal & Alignment Shortcut

Needle anxiety is the #1 fear customers have — but this makes it simple.

1. Pop needles off with two trim tools or spoons

Lift evenly from both sides.

2. Place needles back on lightly

Do not push them fully seated yet.

3. Use your three reference photos

  • OFF

  • ACCESSORY

  • RUNNING

Turn the key between these positions and gently reposition each needle until it matches your pre-install photo.

4. Road test

Before final assembly:

  • Drive around the block

  • Confirm speedometer accuracy

  • Confirm fuel reading (rear vs front tank)

  • Confirm temp needle position

Once satisfied → push needles down fully.

Part 6 — Removing the Green Filter from the Odometer (Optional)

If you want white LED lighting instead of green, you need to remove the green tint film.

Steps:

  1. Remove T10 screws on odometer screen housing

  2. Lift the PCB carefully

  3. Use a fresh razor blade

  4. Scrape side-to-side (never up/down)

  5. Remove only the green layer — not the white diffuser

This creates a bright white odometer that matches modern cluster lighting.

Part 7 — Gear Indicator Adjustment

Once the cluster is back in:

  • Put the truck in DRIVE

  • Turn the small adjuster dial right or left

  • Align P-R-N-D perfectly

Most OBS trucks are misaligned after decades of cable stretch.
This quick step tightens everything up.

Part 8 — Upgrading the HVAC Control Panel

Most original HVAC panels are sun-faded or cracked.

Included upgrades:

  • New overlay panel

  • Clear inserts for the knobs

  • Sticky dots for clean alignment

  • LED bulb upgrade for even lighting

This creates a matching modern look with your cluster upgrade.

Part 9 — Final Assembly

Before closing everything:

Do a final function check:

  • Needles accurate

  • Warning indicators illuminate properly

  • Odometer lighting even

  • HVAC lights bright

  • Gear indicator aligned

Then tighten everything snug, not over-torqued — OBS interior plastics crack easily.

Results: A Modern, Clean, Bright OBS Ford Interior

A properly upgraded cluster transforms the interior:

  • Sharp graphics

  • Perfectly even hidden illumination

  • Crisp white backlighting

  • Clean lens

  • Accurate needles

  • Matching HVAC panel

  • OEM+ look that feels factory modern

You go from “old work truck” to restored classic in one afternoon.
