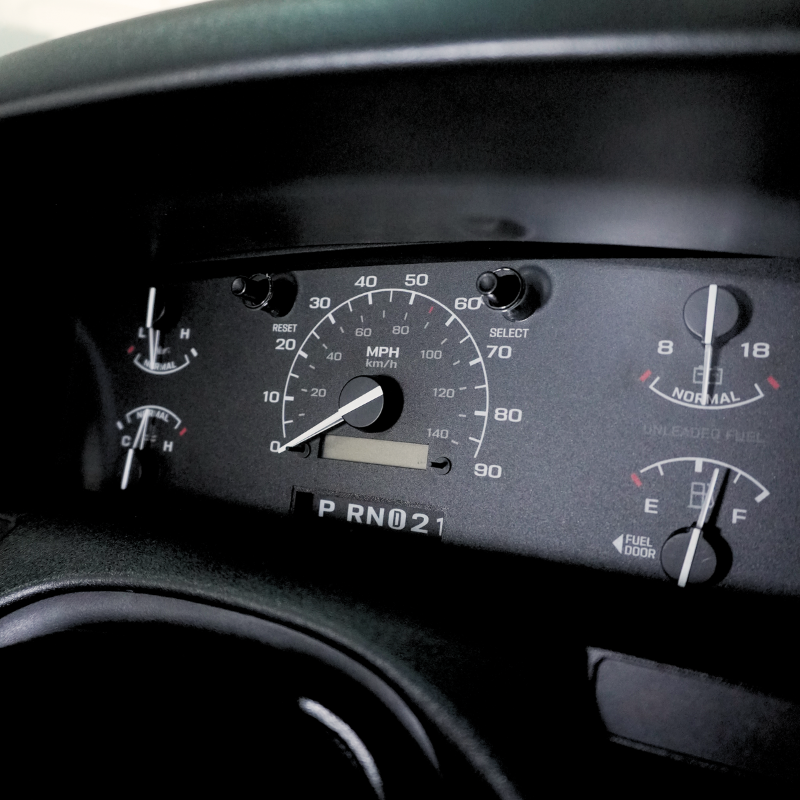

Pulling the instrument cluster in a 92-97 Ford is a straightforward job on paper. The part that catches people out is not the sequence, it is that everything you are touching is thirty years old and brittle.
Here is what you need, what the job involves, and the specific things that break if you rush.
Before you start
Time. Give yourself an hour for your first one, even though the job itself is shorter. Rushing is what breaks clips.
Where. Do it in daylight or with a work light. You are looking for small fasteners in a dark footwell and feeling for connector tabs you cannot see.
Have ready:
- Basic hand tools
- A trim tool or something plastic for panels. Not a screwdriver, it will mark everything it touches
- A tray or magnetic dish for fasteners. They are not all the same length and putting the wrong one back will crack a panel
- Your phone, for photos as you go
- Clean gloves or clean hands if the cluster is coming apart. Fingerprints on the inside of a lens are permanent once it is back together
Disconnect the battery. You are unplugging an instrument cluster, which is a live electrical component. Pull the negative terminal first and leave it off until the job is done.
Photograph everything before you touch it. Every panel, every connector, every fastener position. It costs thirty seconds and it is the difference between confident reassembly and guessing at midnight.
Removing the cluster
The things that actually break
None of these are in a workshop manual and all of them cost money.
Panel clips. Thirty year old plastic has no give left. A clip that would have flexed in 1995 snaps now. Work slowly, spread the load across a wide plastic tool rather than levering at one point, and if something is not moving there is usually a fastener you have not found yet.
The lens. It scratches if you look at it wrong, and once the cluster is open it will attract every piece of dust in the room. Set it face down on something soft, or better, plan to replace it while you are in there. Most lenses this age are hazed anyway.
Connectors. They have a release tab. Find it and press it. Pulling a stuck connector by the wires is how you turn a two hour job into a wiring repair.
Needles. If your kit requires the needles to come off, this is the highest risk part of the whole job and the one worth slowing down for. Note exactly where each needle rests before you touch it, because getting them back on at the wrong resting position means your gauges read wrong forever. Follow the instructions that came with your kit rather than improvising.
While it is out
The cluster only comes out once if you plan properly. Three jobs are far easier now than after it is back in the dash, and all three are the sort of thing people wish they had done:
- LED backlighting. Original bulbs dim with age. The night-time difference is the thing customers comment on most, and swapping them with the cluster in the dash is miserable. LED backlight kits
- A new lens. A fresh faceplate behind a hazed thirty year old lens is a waste of a faceplate
- Needle paint. Faded orange needles against a new face look exactly as tired as they are
All three are in the cluster accessories collection.
Putting it back
Reverse order, with three things worth saying:
- Connectors first, and fully. Push until it clicks. A connector that is seated but not latched will work in your driveway and fail on a rough road
- Reconnect the battery and test before the trim goes back on. Turn the key, check every gauge, check the lighting at night if you have changed bulbs. Finding a dead connector now costs two minutes. Finding it after the dash is back together costs the whole job again
- Do not overtighten anything. These fasteners go into plastic that has been baking in the sun since the nineties. Snug is as far as it goes
